500kg 415v ELECTRIC WINCH
Price on Application (POA)
Price on application. Add what you need, then send one request for everything.
Availability & Price Confirmed with your Quote
- Response back by the next working day
- Technical advice upon request
- Local Australian support
Description
Description

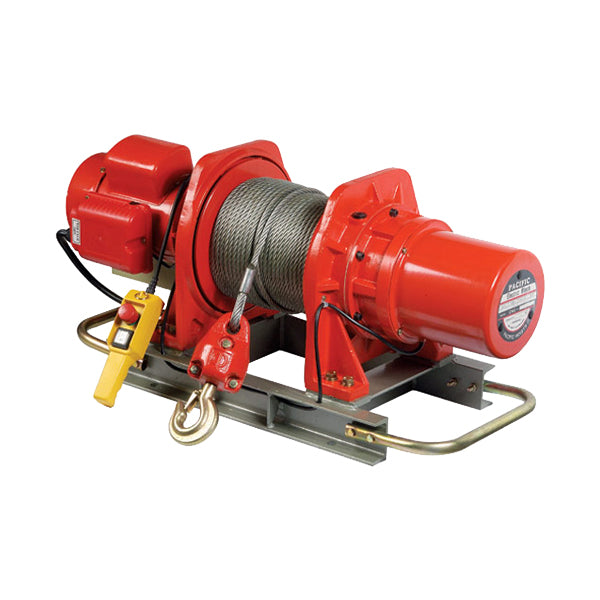

This ComeUp CWG-30151 Electric Winch is precision engineered and constructed from heavy duty material which creates a high performance product with low maintenance; suited for a wide range of applications.
Comeup Electric Winches come in various sizes and lifting capacities. The electric winches feature the CP, CWG and CWL ranges.
Features:
* Lightweight and compact design for easy installation and portable use.
* Electromagnetic spring-applied failsafe brake designed for both static and dynamic loading which applies automatically in the event of power loss.
* IP65 pendant control.
* 24V x 3 meter push button control supplied as standard with all CP and CWG models.
* 240V x 10 meter direct online control pendant as standard with CWL models.
* Compact load sharing design of the heat-treated planetary gear which ensures quiet operation and long life.
* Emergency stop function switch is featured on all models.
* Heavy duty high efficiency ball bearing on all running surfaces.
* Planetary gears for maximum mechanical efficiency.
* Enclosed drum flange to prevent rope becoming trapped between drum and support castings.
* Cast steel foot mountings.
* Fabricated steel drum.
* Supplied on steel base plate ready to mount.
* Quiet running.
* Optional cordless radio remote control available on request.
* Low voltage control ass'y is available upon request.
Specifications:
* Lifting capacity: 500 kg at wire rope top layer
* Lifting speed: 12 - 18 m/min
* Power source: 3 phase, 415V
* Motor rating IP44: 1.5 kw x 4 poles induction brake motor
* Gear ratio: 57:1
* Maximum lifting height: 58 m
* Braking methods: Electromagnetic
* Wire rope: 9 mm x 60 m
* Drum length: 240 mm
* Drum dia.: 140 mm
* Drum flange dia.: 280 mm
* Mounting bolts pattern: 400 mm x 325 mm
* Net weight (standard version): 125 kg
* Gross weight: 150 kg
Specifications
Specifications
-

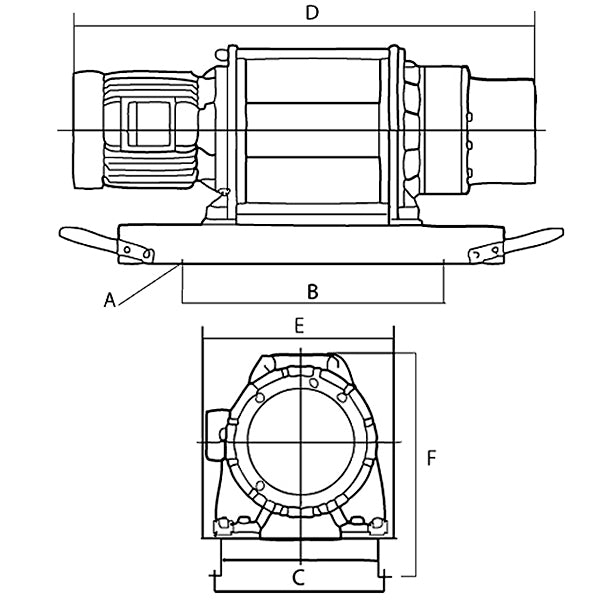

Dimension A
-
Dimension B
-
Dimension C
-
Dimension D
-
Dimension E
-
Dimension F
Attachments
Attachments
Care information
Care information
Quality you can work with
Every product we supply is chosen to perform in real working conditions — workshops, pit lanes, factory floors and job sites right across Australia. We stock genuine, trade-grade brands from manufacturers we've dealt with for years, so what arrives is what was ordered.
Looking after it
Keep threads and sealing surfaces clean and free of grit before assembly. Wipe down after use and store dry. Inspect fittings, hoses, seals and moving parts regularly for wear or damage, and replace anything showing it. Always tighten to the manufacturer's specification — over-tightening is the single most common cause of premature failure.
Not sure what suits your application? Talk to our team — we've been supplying Australian industry and motorsport for over 50 years.
Delivery and Shipping
Delivery and Shipping
Dispatch
In-stock orders placed before 2pm AEST on a business day are picked and dispatched the same day. Anything ordered after that, or over a weekend or public holiday, goes out the next business day. If an item isn't in stock we'll be in touch with a realistic lead time rather than leave you guessing.
Delivery
We ship Australia-wide and freight larger or heavier items on the most sensible carrier for the job. Metro deliveries typically arrive in 1–3 business days; regional and remote areas take longer. You'll get tracking by email as soon as your order leaves us.
Freight charges
Calculated at checkout based on weight, size and destination. Bulky, oversized and dangerous goods items may attract additional freight — we'll always confirm before charging anything extra.
All prices include GST. For international or Pacific Island delivery, contact us for a freight quote.
500 kg Electric Winch
500 kg capacity, 3 phase 415V electric winch with 9 mm x 60 m wire rope fitted, IP65 pendant control, emergency stop and failsafe brake.
